Products > Marine Valve for ship use > Marine Butterfly valve > F7480 Marine lever wafer type butterfly valve

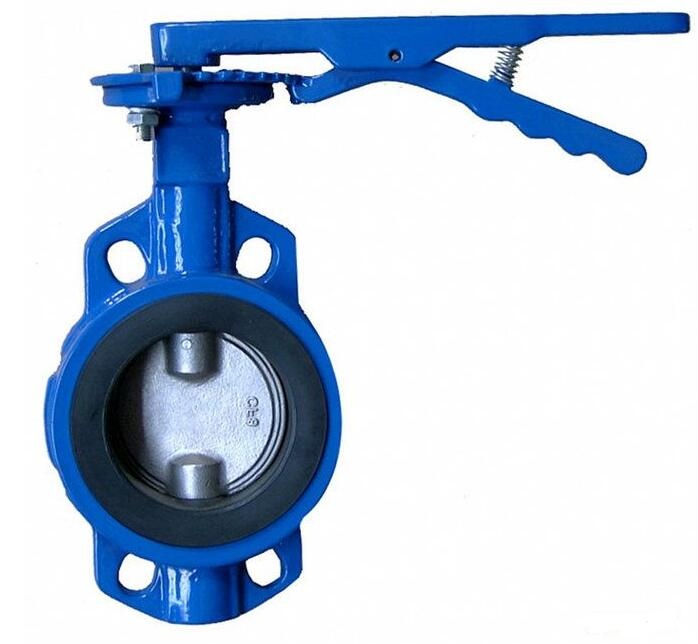

Product name : F7480 Marine lever wafer type butterfly valve
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Nominal Dia.DN2"~DN40"
Nominal Pressure: PN10/PN16
Material:Cast iron/Cast steel
Brand:Bluesea Marine
-------------------------------------------------------------------------------------------------------------------------------------------------------
F7480 Marine lever wafer type butterfly valve

1.Product description of marine lever wafer type butterfly valve:

Materials:

Body: cast iron, ductile iron, carbon steel

Disc: cast iron, ductile iron, carbon steel , stainless steel, Al-Bronze

Stem: carbon steel, stainless steel

Seat: EPDM, PTFE, NBR

Specifications

Size: DN50-1200 (2”-40”)

Pressure: PN10/16

Actuator: lever/worm gear

Standard: DIN, JIS

End connection: wafer type, flange type, lug type

The products are used for controlling the medium to open and close,preventing refluence in fuel oil piping,

lubricating oil piping and water piping, air piping, gas piping and steam piping,

at temperatures -15~135.

Dimensions of flange are according to JIS B2220 flange dimensions of steel pipe.

2.Material Table of marine lever wafer type butterfly valve


3.Outline dimensions of marine lever wafer type butterfly valve



Please contact us and get detailed Technical parameters and Drawings.

We could Design and Produce the Marine Valves according to your detailed requirement !
