Products > Marine Mushroom Vent Head > JIS Marine air vent head > JIS KS91-121A Marine FC cast iron air pipe head
Product name : JIS KS91-121A Marine FC cast iron air pipe head
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Nominal Dia.DN100~DN450
Nominal Pressure: 5K/10K
Material:Cast iron
Brand:Bluesea Marine
-------------------------------------------------------------------------------------------------------------------------------------------------------

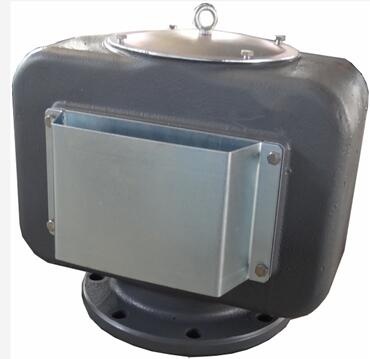

JIS KS91-121A Marine FC cast iron air pipe head

1.Product description of marine cast iron air vent head:

Air Vent Head also can be called as air pipe head, is used for the ventilation of the oil tank or water tank on the vessel.

There two types for float, one is float disc, another type is float ball.

Test Standard: JIS 7400-1996

Flange size as per JIS B2220 - 5K

* The flange size also can be manufactured according to 10K, 16K.

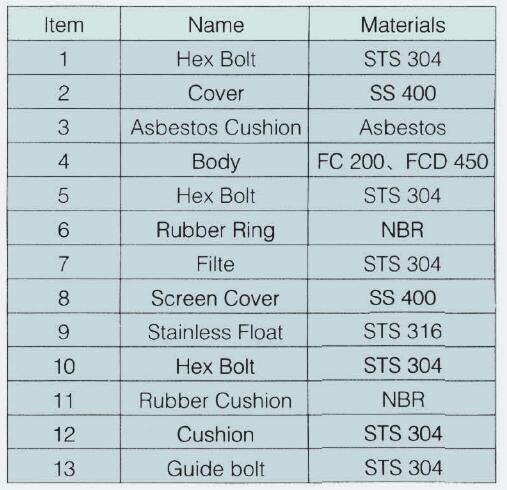

2.Material of marine cast iron air vent head:

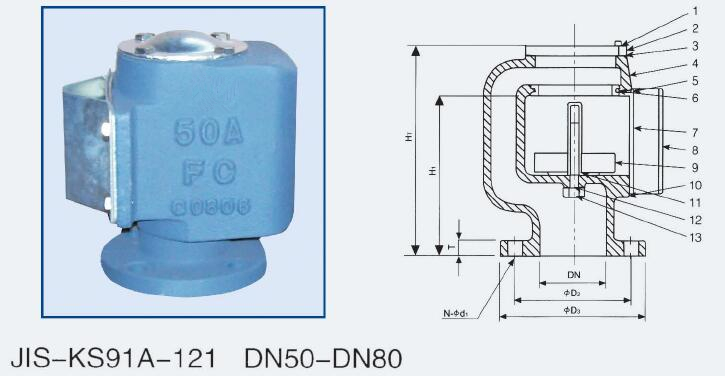

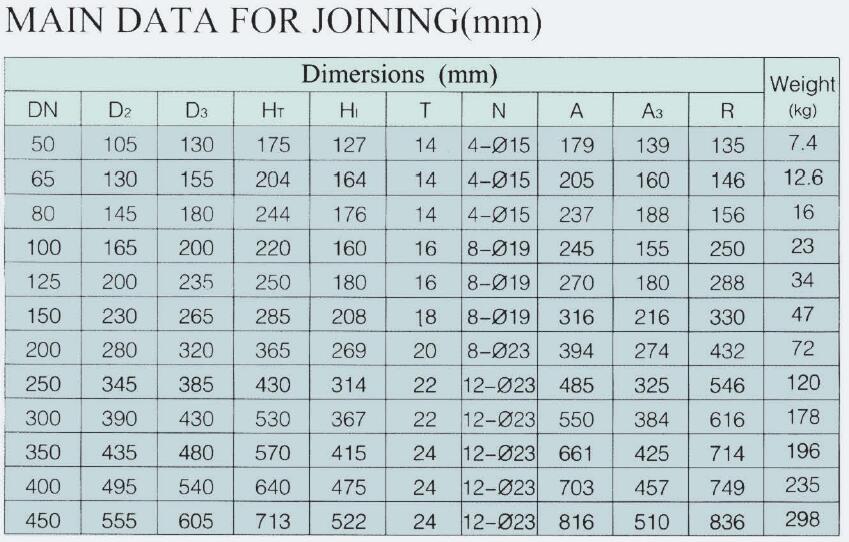

3.Outline dimensions of marine cast iron air vent head:





Please contact us and get detailed Technical parameters and Drawings.

We could Design and Produce the Marine Valves according to your detailed requirement !
