Product name : JIS F7220Q Marine bronze Y-strainer filter
             [Next Product]→
Online Inquiry         Email Us

  Details:
Nominal Dia.DN15~DN80
Nominal Pressure: 5K/10K/16K
Material:Bronze
Brand:Bluesea Marine
-------------------------------------------------------------------------------------------------------------------------------------------------------

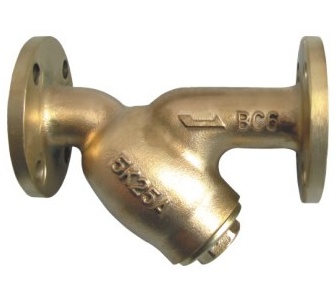

JIS F7220Q Marine bronze Y-strainer filter

1.Product description of marine bronze Y-Strainers:

Design Standard: JIS F7220Q-1996

Test Standard: JIS 7200-1996

Hydraulic Test Pressure: Body- 1.05Mpa

Flange size as per JIS B2220 - 5K

F7220Q-Bronze Y Type Strainer

DN15,20,25,32,40,80

1.End Type; Flange

2.Main material;

Body/Bonnet; BRONZE

Strainer; SUS304;

Gasket; Non-asbestos

3.Application; Sea water piping, fresh water piping, oil and gas.

2.Material of marine bronze Y-Strainers:


1).Body-Cast Iron (BRONZE)

2).Bonnet-Cast Iron(BRONZE)

3).Strainer-Stainless Steel (SUS304)

4).Gasket:non-asbestos

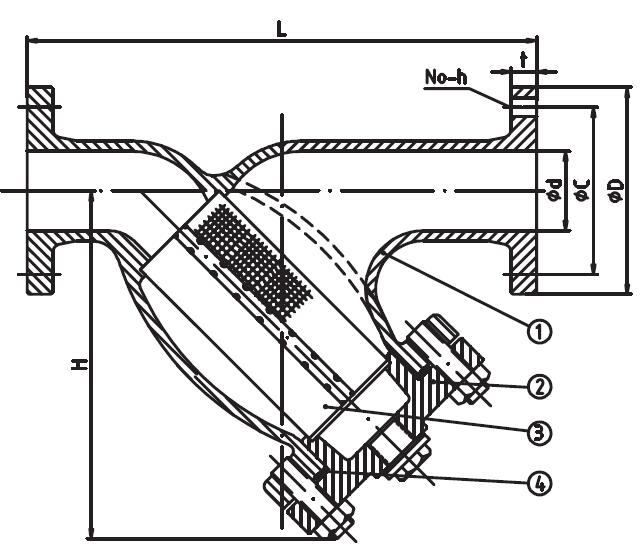

3.Outline of marine bronze Y-Strainers:


Please contact us and get detailed Technical parameters and Drawings.

We could Design and Produce the Marine Valves according to your detailed requirement !
