Products > Marine Valve for ship use > Marine globe valve > JIS F7312 5K Marine cast steel screw down angle valve
Product name : JIS F7312 5K Marine cast steel screw down angle valve
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Nominal Dia.DN50~DN300
Nominal Pressure: 5K
Material:SC Cast steel

Brand:Bluesea Marine

-------------------------------------------------------------------------------------------------------------------------------------------------------

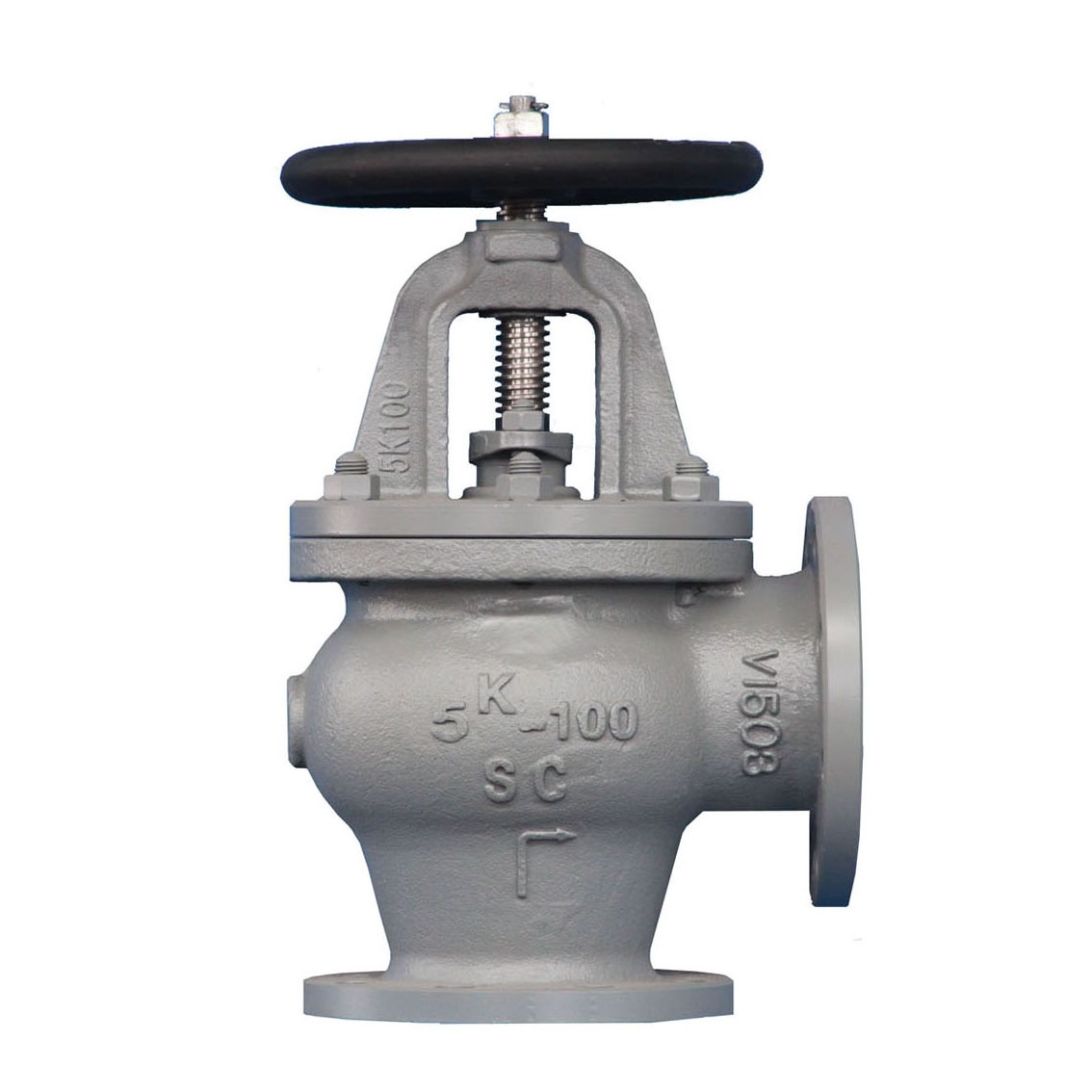

JIS F7312 5K Marine cast steel screw down angle valve

1.Product description:

Information

Standard: JIS F7312

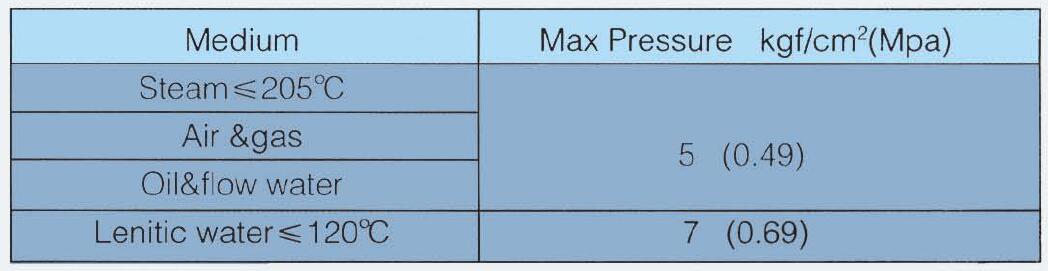

Pressure: 5kgf/cm2

Diameter: 50mm~300mm

Type: Angle

Medium: fresh water, sea water, oil, air etc

Actuation Ways: manual, automatic, pneumatic etc

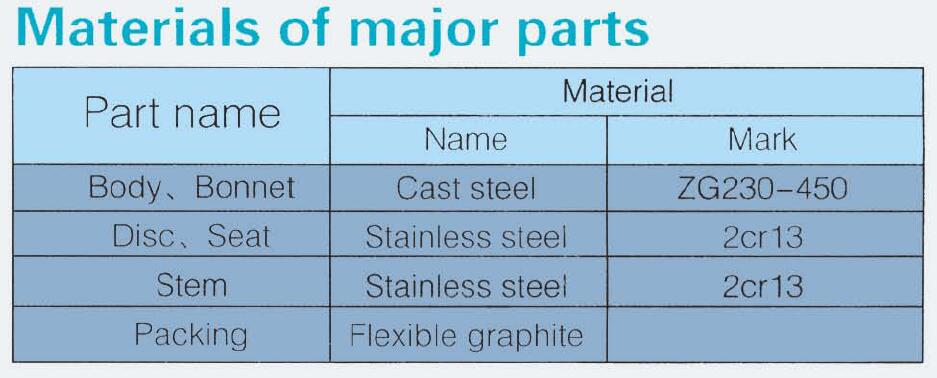

2.Material Table

No

name of part

material

class B

class C

1

body

SC450

2

bonnet

SC450

3

disc

BC6

SCS2

4

valve seat

BC6

SCS2

5

stem

C377IBD OH BE

SUS403

6

packing gland

BC6

7

gasket

non-asbestos

8

handwheel

FC200

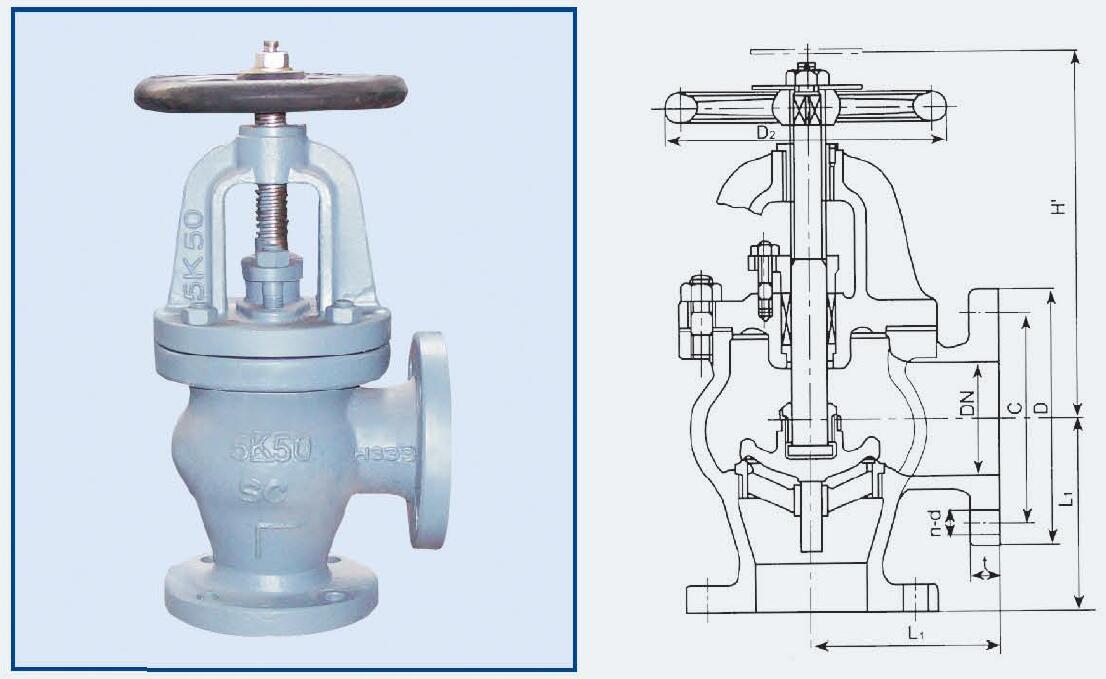

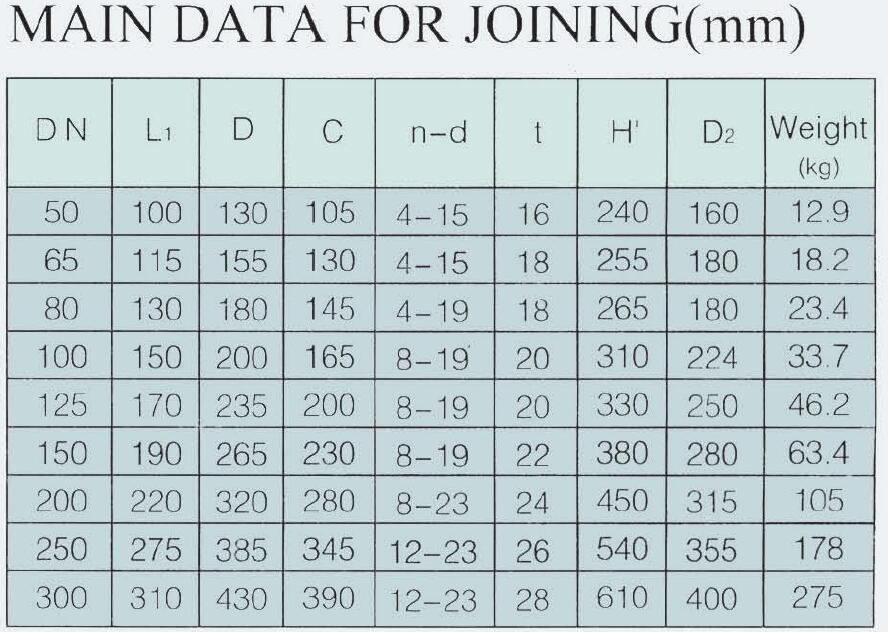

 2.Outline dimensions





Please contact us and get detailed Technical parameters and Drawings.

We could Design and Produce the Marine Valves according to your detailed requirement !
