Products > Marine Valve for ship use > Marine check globe Valve > JIS F7376 10K Ship FC screw down check angle valve

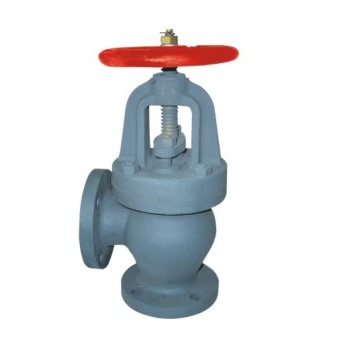

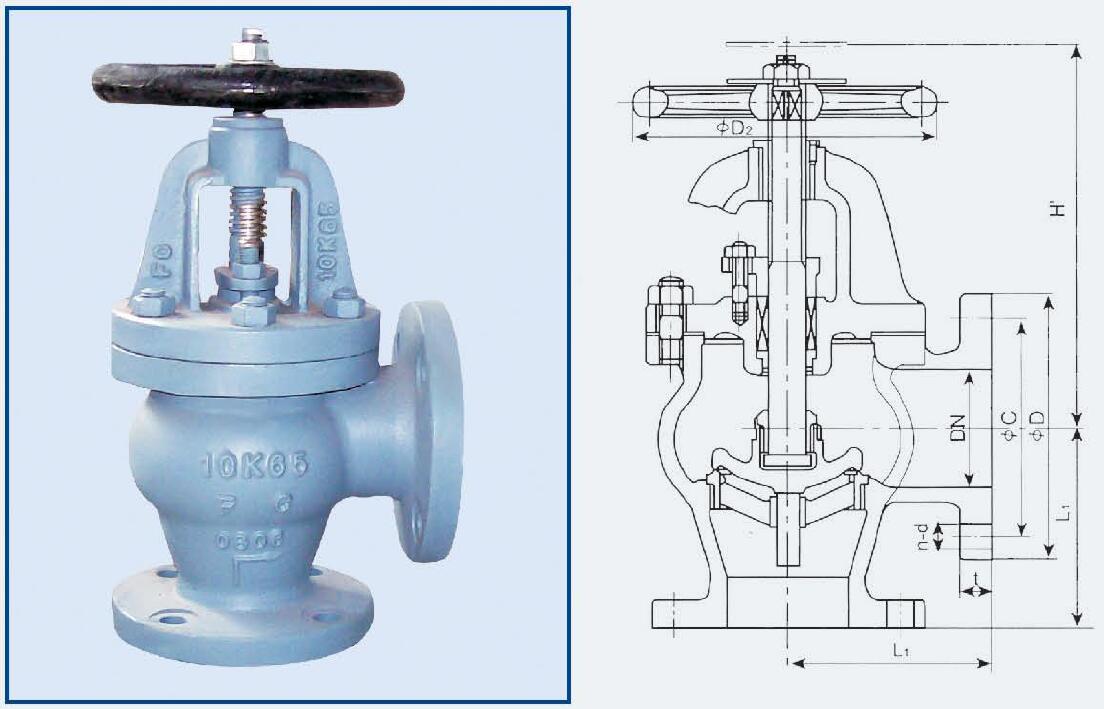

Product name : JIS F7376 10K Ship FC screw down check angle valve
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Nominal Dia.DN50~DN300
Nominal Pressure: 10K
Material:FC Cast iron
Brand:Bluesea Marine
-------------------------------------------------------------------------------------------------------------------------------------------------------

JIS F7376 10K Ship FC screw down check angle valve

1.Product Description


Specification for marine check angle valve

Standard: JIS F7376

Nominal Pressure: 10kgf/cm2

Nominal Diameter: 50mm~300mm

Type:Angle valve

Temperature: < 205℃

Certificate: CCS, ABS, BV, GL ,LR.RINA.RS.DNV etc

Actuation Ways:Manual, pneumatic, electric etc, it is suitable for cutting or adjust and throttling medium

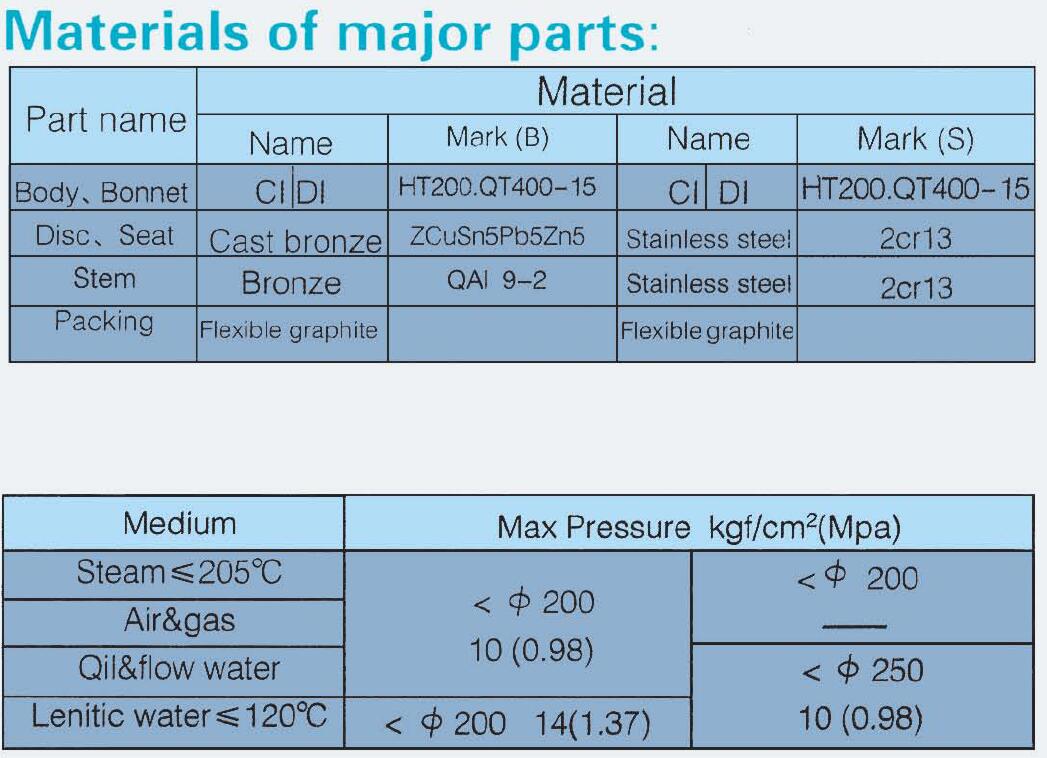

2.Material Table of Marine cast iron valve

No

name of part

material

class B

class C

1

body

FC200

2

bonnet

FC200

3

disc

BC6

SCS2

4

valve seat

BC6

SCS2

5

stem

C377IBD OH BE

SUS403

6

packing gland

BC6

7

gasket

non-asbestos

8

handwheel

FC200



2.Material Table of Marine cast iron valve




Please contact us and get detailed Technical parameters and Drawings.

We could Design and Produce the Marine Valves according to your detailed requirement !
