Product name : JIS F7364 10K Marine cast iron gate valve
|
Details: |
Nominal Dia.: DN50~DN450
Nominal Pressure: 10K Material:Cast iron Brand:Bluesea Marine -------------------------------------------------------------------------------------------------------------------------------------------------------

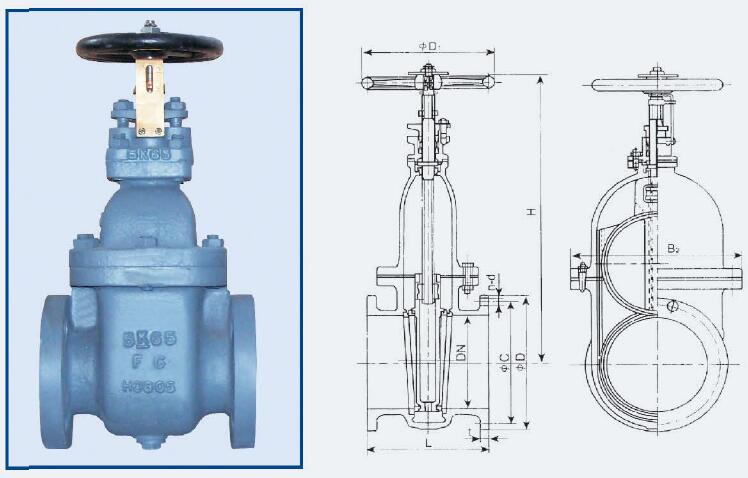

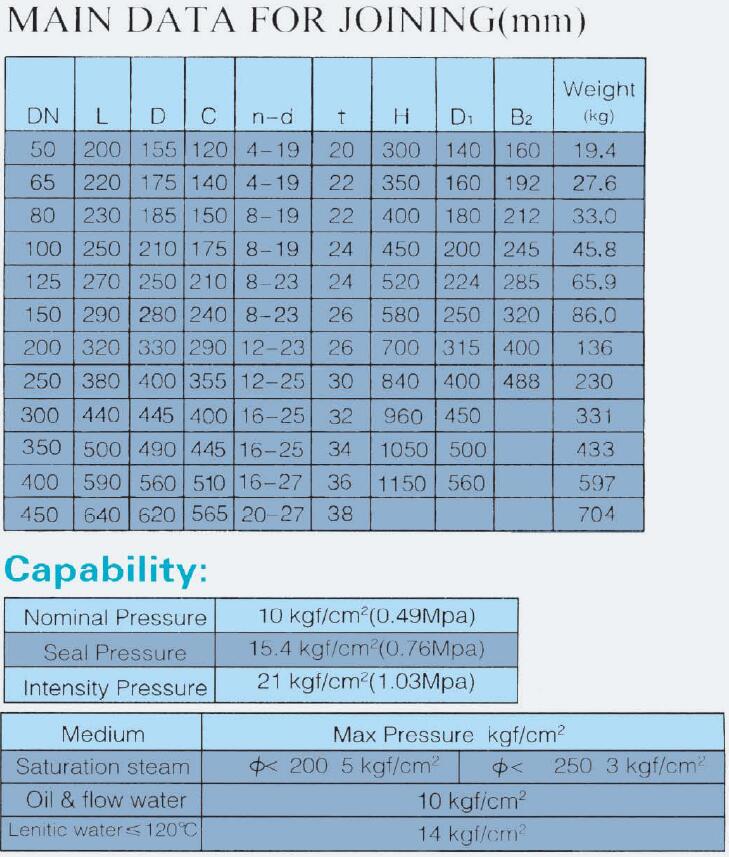

JIS F7364 10K Marine cast iron gate valve 1.Product description of marine cast iron gate valve: Nominal Pressure: 10K Nominal Diameter: DN50~DN450 Medium: water, sea water, air, oil etc Temperature: -40℃~120℃ Actuation ways:gate valve:Manual, pneumatic, electric etc, The products are used for controlling the medium to open and close,preventing refluence in fuel oil piping, lubricating oil piping and water piping, air piping, gas piping and steam piping, at temperatures 120℃ or less. Dimensions of flange are according to JIS B2220 flange dimensions of steel pipe. Advantages of gate valve: 1.Small fluid resistance 2.The torque for opening and closing is small, so it is easy to open and close. 3.The medium flowing direction is not restricted, and it doesn’t disturb flowing and reduce the pressure of pipeline. 4. Short length structure 5. Good sealing performance 6. Simple shape, good casting process, widely used 2.Material Table of marine cast iron gate valve: 3.Outline dimensions of marine cast iron gate valve: |
