Product name : JIS F7367 5K Marine bronze gate valve
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Nominal Dia.DN15~DN40
Nominal Pressure: 5K
Material:Bronze
Brand:Bluesea Marine
-------------------------------------------------------------------------------------------------------------------------------------------------------

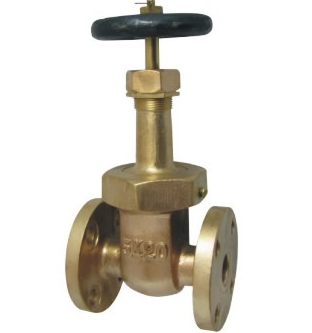

JIS F7367 5K Marine bronze gate valve

1.Product description of marine bronze gate valve:

Nominal Pressure: 5K

Nominal Diameter: DN15~DN40

Medium: water, sea water, air, oil etc

Temperature:  -40℃~120℃

Actuation ways:gate valve:Manual, pneumatic, electric etc

The products are used for controlling the medium to open and close,preventing refluence in fuel oil piping,

lubricating oil piping and water piping, air piping, gas piping and steam piping,

at temperatures 120 or less.

Dimensions of flange are according to JIS B2220 flange dimensions of steel pipe.

 Advantages of gate valve:

 1.Small fluid resistance

2.The torque for opening and closing is small, so it is easy to open and close.

3.The medium flowing direction is not restricted, and it doesn’t disturb flowing and reduce the pressure of pipeline.

4. Short length structure

5. Good sealing performance

6. Simple shape, good casting process, widely used

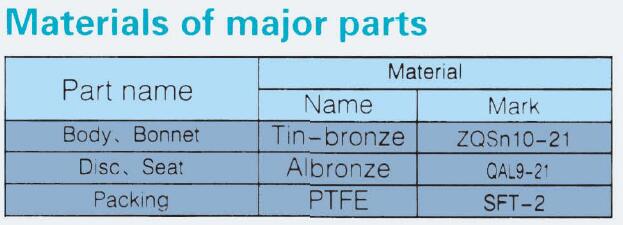

2.Material Table of marine bronze gate valve:

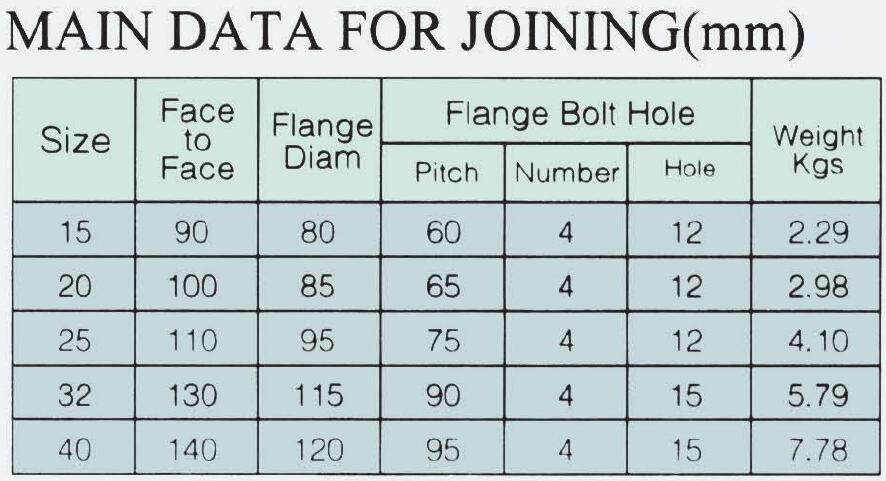

3.Outline dimensions of marine bronze gate valve:


Please contact us and get detailed Technical parameters and Drawings.

We could Design and Produce the Marine Valves according to your detailed requirement !
