Products > Marine Valve for ship use > Marine globe valve > JIS F7310 16K Marine cast iron angle stop valve
Product name : JIS F7310 16K Marine cast iron angle stop valve
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Nominal Dia.DN50~DN200
Nominal Pressure: 16K
Material:FC Cast iron

Brand:Bluesea Marine

-------------------------------------------------------------------------------------------------------------------------------------------------------

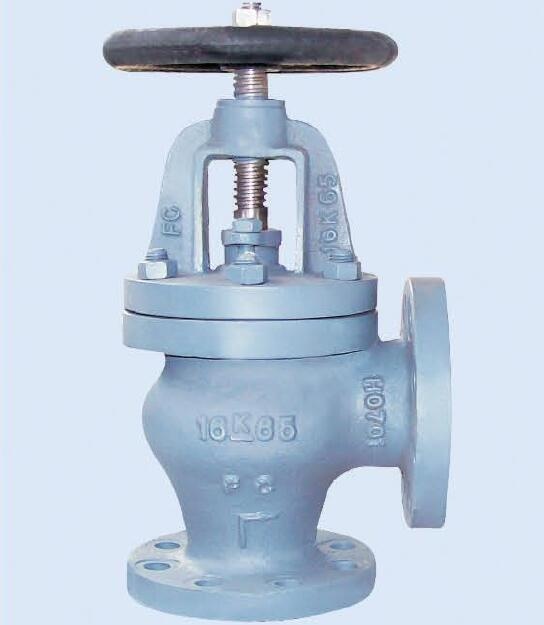

JIS F7310 16K Marine cast iron angle stop valve

1.Product Description


Specification for marine globe valve

Standard: JIS F7310

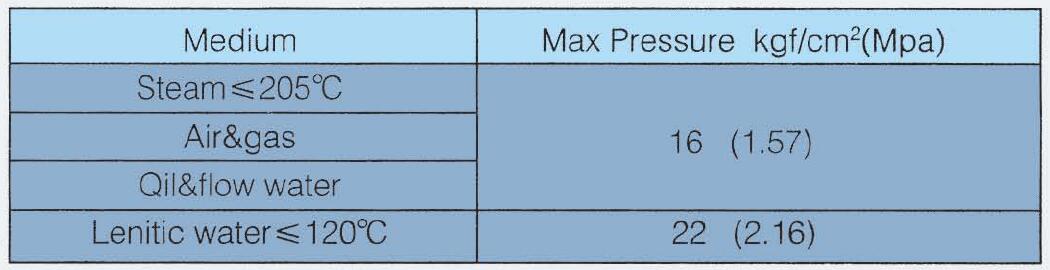

Nominal Pressure:16kgf/cm2

Nominal Diameter: 50mm~200mm

Type: Angle

Temperature: < 205℃

Certificate: CCS, ABS, BV, GL ,LR.RINA.RS.DNV etc

Actuation Ways:Manual, pneumatic, electric etc, it is suitable for cutting or adjust and throttling medium

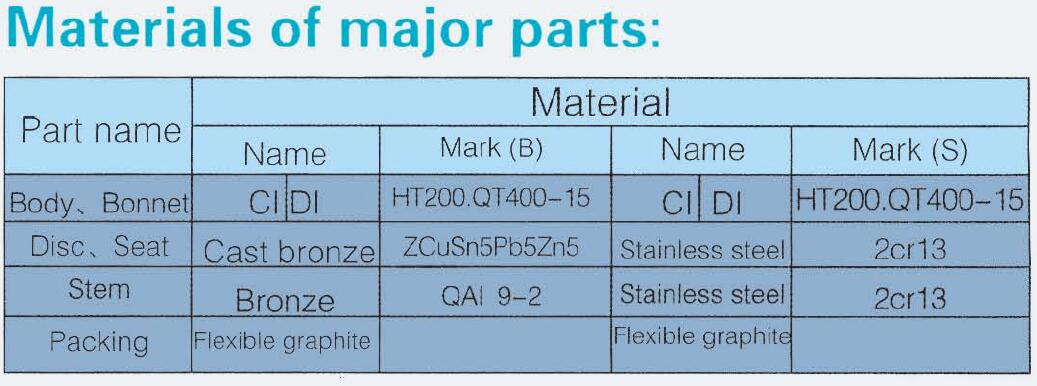

2.Material Table of Marine cast iron valve

No

name of part

material

class B

class C

1

body

FC200

2

bonnet

FC200

3

disc

BC6

SCS2

4

valve seat

BC6

SCS2

5

stem

C377IBD OH BE

SUS403

6

packing gland

BC6

7

gasket

non-asbestos

8

handwheel

FC200

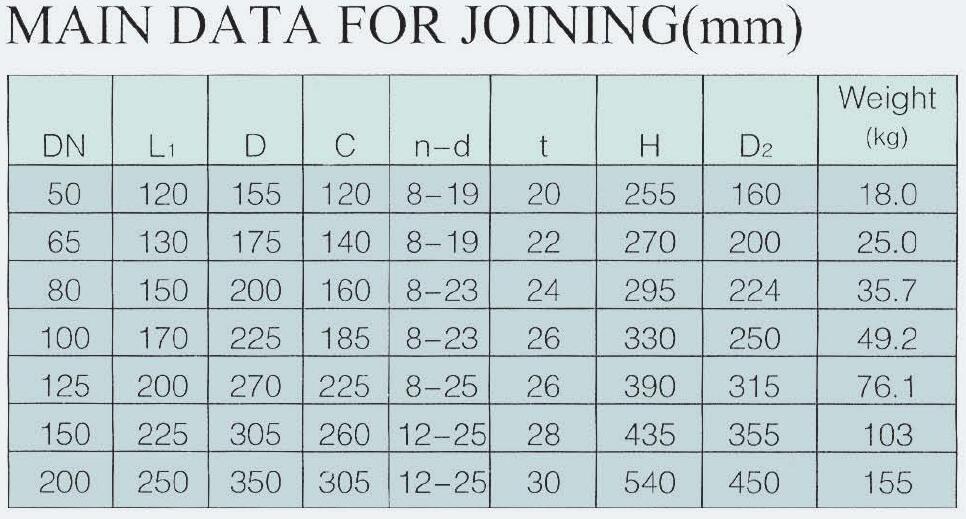

3.Outline dimensions






Please contact us and get detailed Technical parameters and Drawings.

We could Design and Produce the Marine Valves according to your detailed requirement !
