Products > Marine Valve for ship use > Marine check valve > JIS F7372 5K Marine cast iron swing check valve

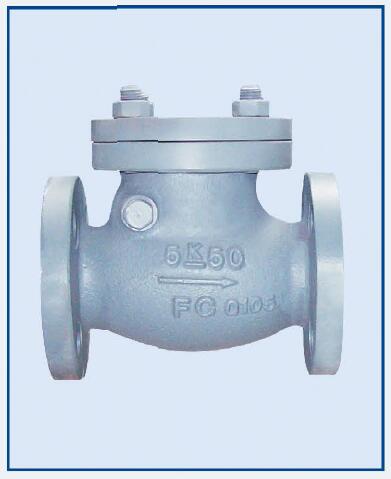

Product name : JIS F7372 5K Marine cast iron swing check valve
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Nominal Dia.DN50~DN300
Nominal Pressure: 5K
Material:Cast iron
Brand:Bluesea Marine
-------------------------------------------------------------------------------------------------------------------------------------------------------
JIS F7372 5K Marine cast iron swing check valve

1.Product description of marine swing check valve;

Specification of swing check valve

Standard: JIS F7372

Nominal Pressure: 5K

Nominal Diameter: DN50-DN300

Actuation Ways: Automatic and pneumatic, the main role is to prevent the backflow medium



2.Material Table of marine swing check valve;



Name of Part

Material

1

Body

FC200

2

Bonnet

FC200

3

Disc

BC6

4

Valve Seat

BC6

5

Gasket

NON-asbestos

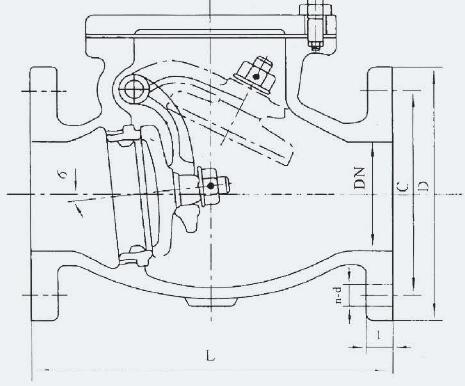

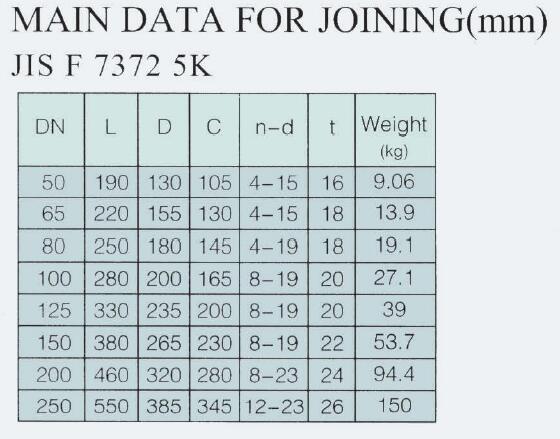

3.Outline dimensions of marine swing check valve;




Please contact us and get detailed Technical parameters and Drawings.

We could Design and Produce the Marine Valves according to your detailed requirement !
