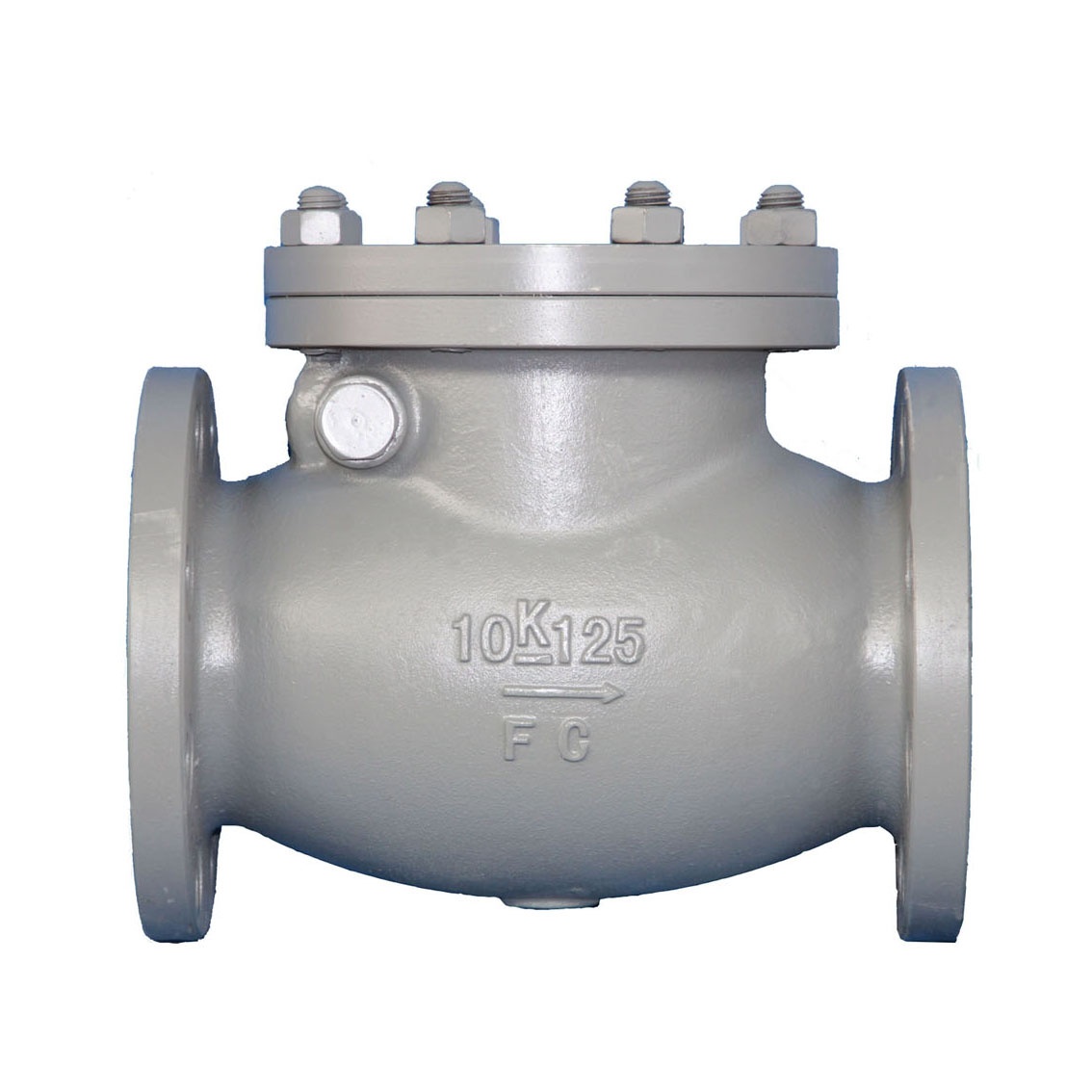

Product name : JIS F7373 10K Marine cast iron swing check valve
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Nominal Dia.DN50~DN200
Nominal Pressure: 10K
Material:Cast iron
Brand:Bluesea Marine
-------------------------------------------------------------------------------------------------------------------------------------------------------

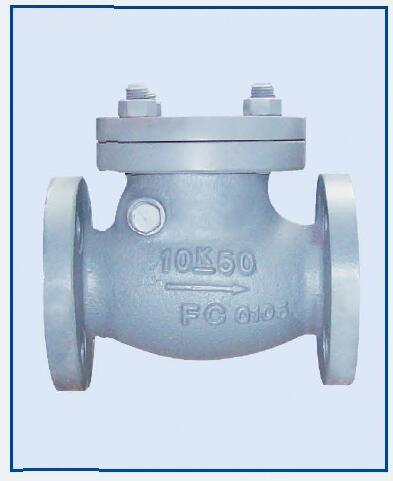

JIS F7373 10K Marine cast iron swing check valve

1.Product description of marine swing check valve;

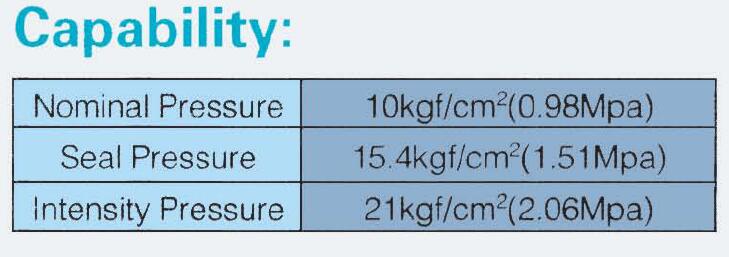

Specification of swing check valve

Standard: JIS F7373

Nominal Pressure: 10K

Nominal Diameter: DN50-DN200

Actuation Ways: Automatic and pneumatic, the main role is to prevent the backflow medium

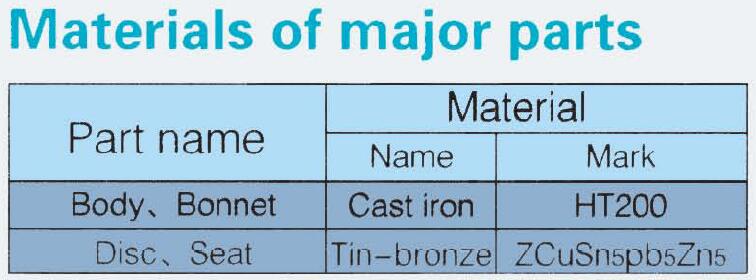

2.Material Table of marine swing check valve;



Name of Part

Material

1

Body

FC200

2

Bonnet

FC200

3

Disc

BC6

4

Valve Seat

BC6

5

Gasket

NON-asbestos

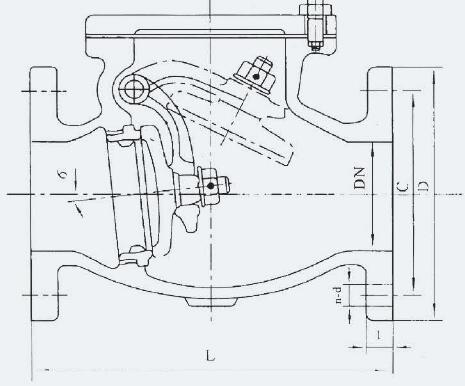

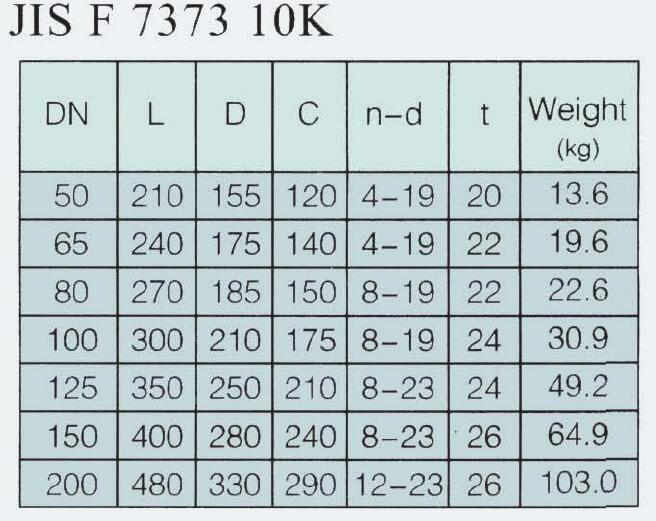

3.Outline dimensions of marine swing check valve;





Please contact us and get detailed Technical parameters and Drawings.

We could Design and Produce the Marine Valves according to your detailed requirement !
