Products > Marine Valve for ship use > Marine check globe Valve > JIS F7354 5K Marine FC screw down non return angle valve

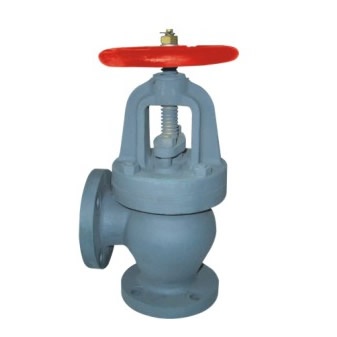

Product name : JIS F7354 5K Marine FC screw down non return angle valve
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Nominal Dia.DN50~DN450
Nominal Pressure: 5K
Material:FC Cast iron
Brand:Bluesea Marine
-------------------------------------------------------------------------------------------------------------------------------------------------------

JIS F7354 5K Marine FC screw down non return angle valve

1.Product Description of marine SDNR check angle valve

Specification for marine SDNR check Angle valve

Standard: JIS F7354

Pressure: 5kgf/cm2

Diameter: 50mm-450mm

Type: SDNR check angle valve

Medium: fresh water, sea water, oil, air, gas etc

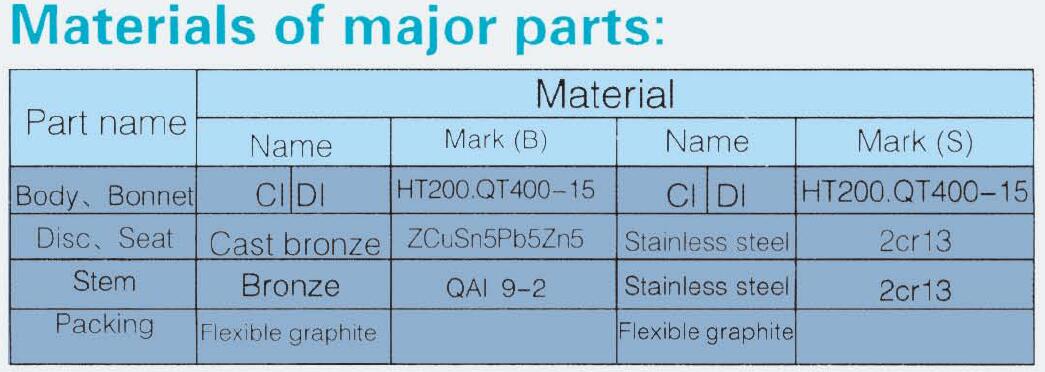

2.Material Table ofmarine SDNR check angle valve



Name of parts

Material /CLASS B

CLASS C

1

Body

FC200

FC200

2

Bonnet

FC200

FC200

3

Disc

BC6

SCS2

4

Valve Seat

BC6

SCS2

5

Stem

C3771BD OH BE

SUS403

6

Packing Gland

BC6

BC6

7

Gasket

Non-asbestos

Non-asbestos

8

Hand wheel

FC200

FC 200

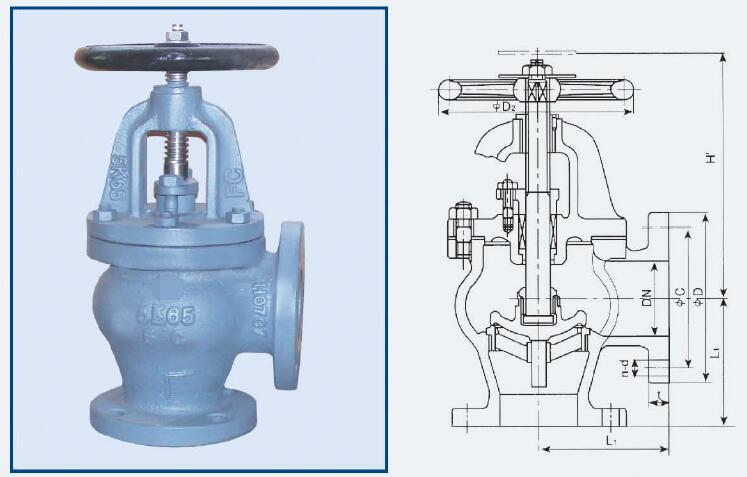

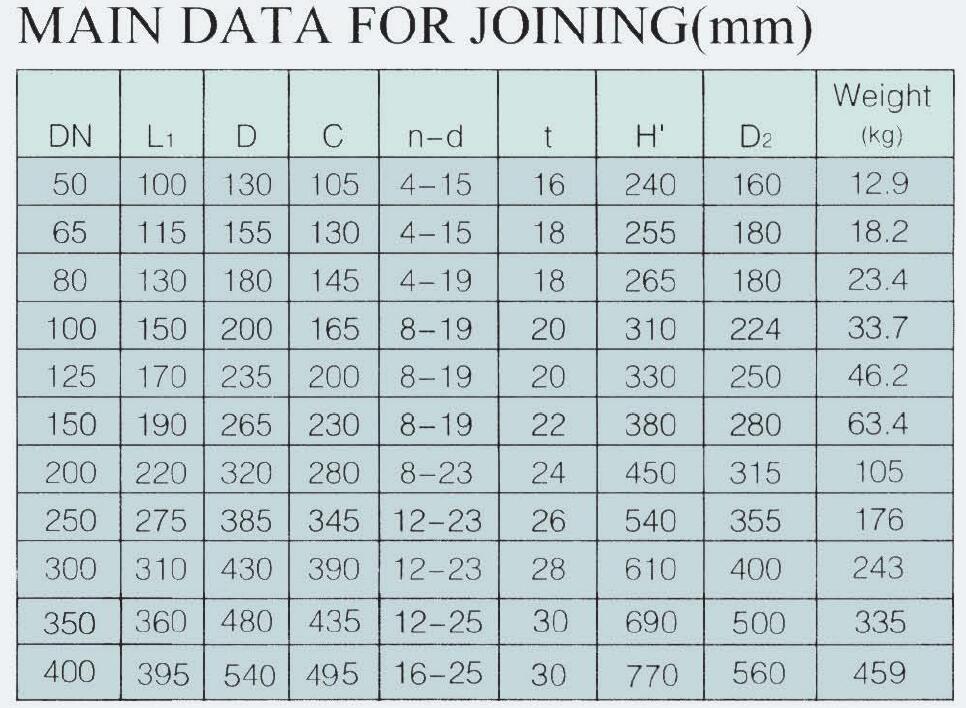

3.Outline dimensions of marine SDNR check angle valve:

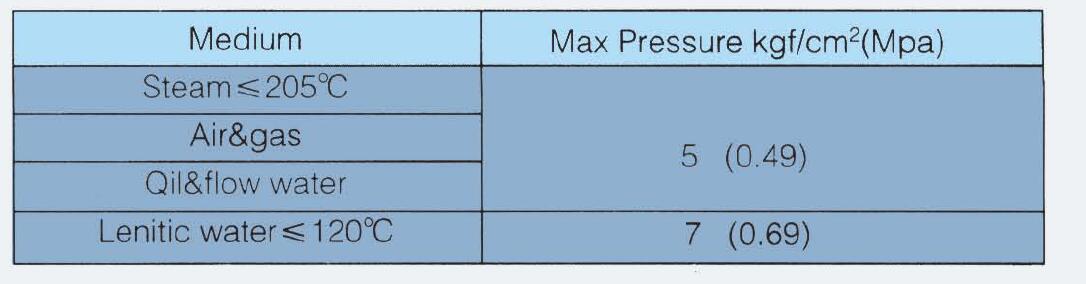

4.Material &Pressure standard of marine SDNR check angle valve:




Please contact us and get detailed Technical parameters and Drawings.

We could Design and Produce the Marine Valves according to your detailed requirement !
