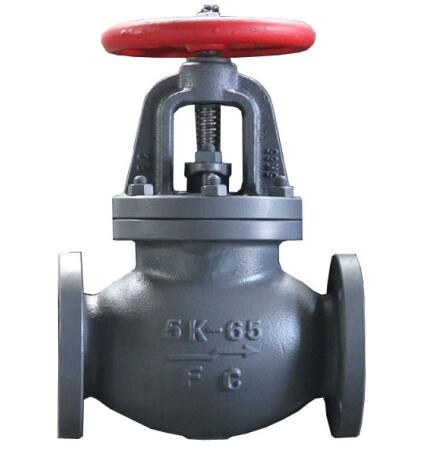

Product name : JIS F7353 5K Marine cast iron screw down check globe valve
←[Previous Product]
Online Inquiry         Email Us

  Details:
Nominal Dia.DN50~DN400
Nominal Pressure: 5K
Material:FC Cast iron
Brand:Bluesea Marine
-------------------------------------------------------------------------------------------------------------------------------------------------------

JIS F7353 5K Marine cast iron screw down check globe valve

1.Product Description of marine SDNR check globe valve

Specification for marine SDNR check globe valve

Standard: JIS F7353

IMPA Code: from 751101 to 751111

Pressure: 5kgf/cm2

Diameter: 50mm-400mm

Type: SDNR check globe valve

Medium: fresh water, sea water, oil, air, gas etc

2.Material Table ofmarine SDNR check globe valve

No

name of part

material

class B

class C

1

body

FC200

2

bonnet

FC200

3

disc

BC6

SCS2

4

valve seat

BC6

SCS2

5

stem

C377IBD OH BE

SUS403

6

packing gland

BC6

7

gasket

non-asbestos

8

handwheel

FC200

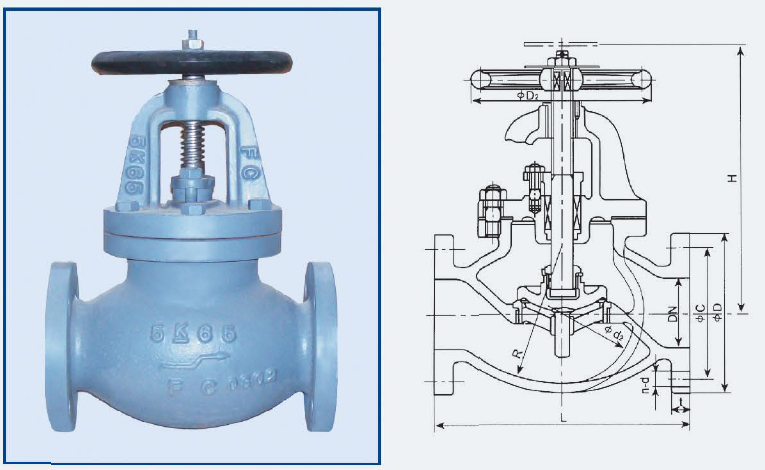

3.Outline dimensionof marine SDNR check globe valve:




Please contact us and get detailed Technical parameters and Drawings.

We could Design and Produce the Marine Valves according to your detailed requirement !
